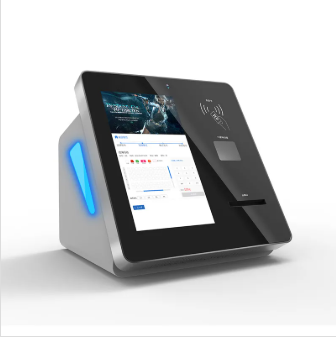

Pointus Solutions: Intelligent Multi-Function Ticket & Payment Kiosk
Product Summary
Engineered from heavy-duty 1.5mm to 2.5mm cold-roll steel sheets, our industrial-grade multi-function kiosk provides robust, anti-dust, and anti-vandal protection for high-traffic indoor environments. Featuring a modular design built for 24/7 continuous operation, this versatile terminal supports payment processing, ticketing, queue management, and automated self-service applications. Cabinet colors and branding logos are fully customizable to match enterprise identity requirements.
Technical Specifications & Core Hardware
-
Cabinet Construction: 1.5mm to 2.5mm cold-rolled steel frame with moisture-proof, anti-rust, and static-free finish.
-
Display Options: 17-inch, 19-inch (or optional 8″ to 65″) LCD/TFT monitor; Max resolution 1280×1024, brightness 250 cd/m², contrast 1000:1.
-
Touch Screen Technology: Pure tempered glass with IR, SAW, or Capacitive options; single-point touch life expectancy exceeding 50,000,000 touches.
-
PC System: Industrial motherboard (Seavo / Gigabyte / Advantech AIMB 562), Intel Dual Core / Core i3/i5/i7 CPU, 2GB–8GB RAM, and 500GB HDD storage.
-
Supported Operating Systems: Windows 7, Windows 8, Windows XP, or Linux compatibility.
-
Power Supply: 110–120V / 220–240V AC input (100–240V range, 50Hz–60Hz), equipped with digital power supply and UPS backup support (3–20 minutes).
-
Warranty: 12 Months.
Standard Peripheral Modules
-
Printing System: Epson thermal receipt printer with auto-cutter (80mm paper width, 150mm/s speed).
-
Payment Processing:
-
Bank/Credit Card Reader supporting Magcard, IC Card, RF Card, and Mifare S50/S70/UL cards.
-
Encrypted Metal Pinpad (IP65 protection level, 2,000,000 cycle lifespan).
-
Cashcode Bill Acceptor (four-way banknote insertion, 96%+ validation rate, 1000-note capacity).
-
-
Coin Handling: Coin acceptor supporting up to 32 coin types with high counterfeit detection capability.
-
Connectivity & Interface: 6 RS-232 ports, 6 USB ports, 1 parallel port, 10/100M network port, integrated sound and network cards, and internal stereo speakers/cooling fans.
Optional Hardware Modules
-
Wireless communication modules
-
Barcode & QR code scanners
-
Passport and ID card readers
-
Coin recycle & coin dispenser units
-
High-resolution web camera
-
Cash dispenser
-
A4 Laser printer
-
RFID card reader
-
Secondary advertising screen
Ideal Applications & Deployment Venues
Designed specifically for automated transactions, ticketing, and service management across diverse sectors:
-
Transportation: Metro stations, railway stations, subways, and parking lots
-
Finance & Commerce: Commercial banks and shopping malls
-
Hospitality & Entertainment: Hotels, restaurants, and theatres
-
Healthcare: Hospitals and medical clinics
