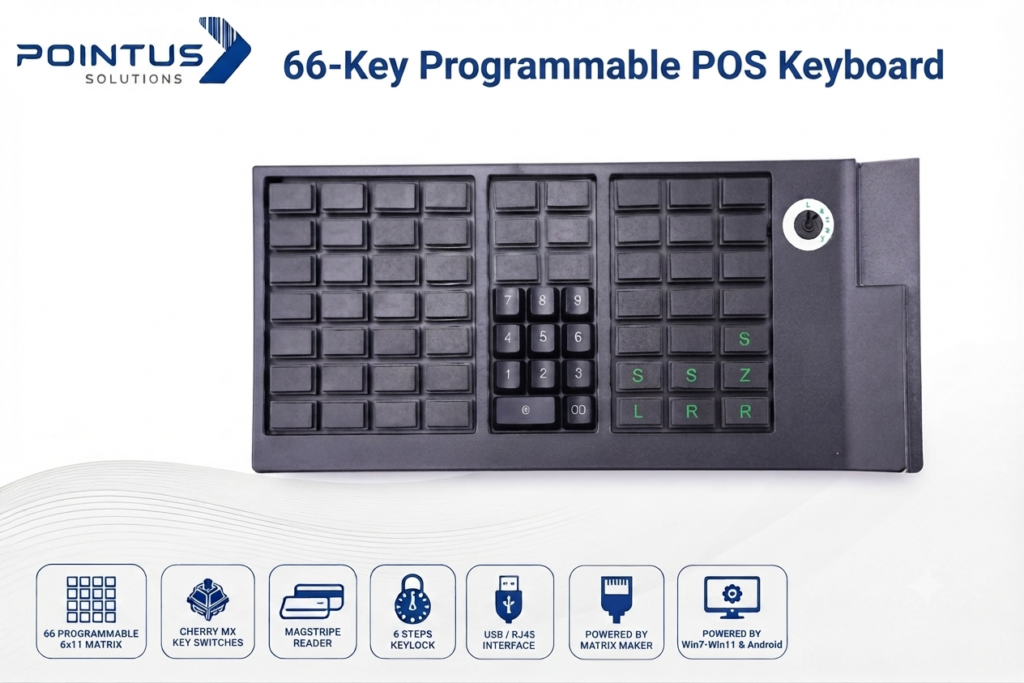

Programmable 66-Keys POS Keyboard with Magstripe Reader

Professional Programmable Keyboard for POS, Retail & Specialized Data Entry Applications

The 66-Key Programmable POS Keyboard is a flexible and durable input solution designed for retail, point-of-sale, hospitality, banking, kiosks, and specialized data-entry applications. Featuring 66 fully programmable keys and a built-in side-mounted magstripe reader, it allows businesses to configure frequently used commands, functions, characters, and macros for faster and more efficient operations.

The keyboard uses Cherry MX key switches for reliable performance and excellent tactile feedback. Its integrated magstripe reader supports multiple standards and programmable data formats, while the 6-step keylock provides controlled access to different operating and programming modes.

Programming is handled through Matrix Maker software, supporting multi-layer programming, keyboard-wedge functionality, configurable delays, and long-term data retention without requiring an additional battery. The keyboard is available with USB or PS/2 connectivity and supports OPOS, JPOS, and UPOS environments.

Key Features

  • 66 fully programmable keys
  • Built-in side-mounted magstripe reader
  • Cherry MX mechanical key switches
  • Programmable MSR settings through Matrix Maker
  • 6-step programmable keylock
  • USB and PS/2 interface options
  • Detachable cable with durable RJ45 connector
  • Supports OPOS, JPOS and UPOS
  • Multi-layer programming capability
  • Keyboard-wedge functionality
  • Programmable macros and unlimited characters
  • Optional relegendable keycaps
  • Numeric profile keycaps available
  • Internal metal plate for enhanced ESD protection
  • Data retention without an additional battery
  • Up to 500,000 magstripe swipe cycles

Magstripe Reader

  • Supports ISO 7812, IBM, AAMVA and JIS-2 standards
  • Multi-country code support
  • Programmable prefix, suffix, header, separator and track sequence
  • Supports Track 1, Track 2 and Track 3
  • Swipe speed from 10–100 cm/s
  • Designed for high-volume card-reading applications

Recommended Applications

Retail POS • Supermarkets • Restaurants • Hospitality • Banking • Kiosks • Ticketing • Gaming • Warehousing • Inventory Systems • Specialized Data Entry
