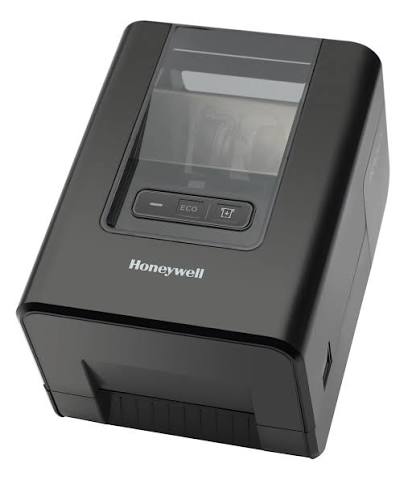

The Honeywell PC42E-TB02200 is a compact, high-performance desktop barcode and label printer from the popular PC42E-T series, engineered for reliable thermal transfer and direct thermal printing.
Key Specifications & Features
-
Print Technology: Thermal Transfer and Direct Thermal
-
Print Resolution: 203 dpi (8 dots/mm)
-
Maximum Print Speed: Up to 6 inches per second (ips) / 152 mm/s
-
Maximum Print Width: 4.25 inches (108 mm)
-
Standard Interfaces: USB Device, USB Host, and built-in Ethernet (LAN)
-
Memory: 128 MB Flash, 128 MB SDRAM
Media & Ribbon Handling
-
Media Width: 1.0 in to 4.5 in (25.4 mm to 114 mm)
-
Max Media Roll Diameter: 5.0 in (127 mm)
-
Ribbon Support: Accepts both 0.5-inch (74m) and 1.0-inch (300m) core ribbons, allowing flexible utilization of consumable stock without requiring separate adapters.
-
Ribbon Width: 1.0 in to 4.3 in (25.4 mm to 110 mm; coated side out)
Distinctive Features
-
ECO Button: Features a dedicated economy mode button that helps minimize label wastage and bypasses long calibration wait times during media changes.
-
Printer Command Languages (Emulations): Supports a wide variety of industry emulations including ZSim2 (ZPL II), DPL, Direct Protocol (DP), and ESim (EPL), making it easy to drop into existing workflows configured for other printer brands.
-
Smart Design: Includes a large top viewing window to monitor media supplies easily at a glance.
Important Ordering Note
-
Power Cord: Standard configuration packages for part number
PC42E-TB02200typically ship without the regional AC power cord included in the box (requiring a separate regional power cable or Honeywell power device part
